- How do I connect the T4s in stereo?
You can use the ToneMatch T4s digital mixer with a stand-alone power supply and connect to any powered speaker system, not JUST the S1 Pro+ or any of the Bose Pro range.
But utilising the included ToneMatch cable and connecting to an L1 Pro8, Pro16 or Pro32, you can power the T4s without a secondary power supply, and there’s no need for an audio cable between the L1 Pro and T4s either.
Read the full step-by-step guide on how to connect your ToneMatch T4s mixer with the L1 Pro range in mono, dual mono, or stereo.
- How do I connect the T8s to the L1 Pro?
If you want to connect your Tonematch T8s to the L1 Pro8, Pro16, or Pro32, you just need a couple of Ethernet cables.
You can run a single L1 Pro in mono, or a pair of L1 Pro, S1 Pro or F1 812 in either stereo, or dual mono (daisy chain).
Follow the simple guide here: Tonematch T8s to L1 Pro connection guide
- How do I connect my T1 Tonematch to an L1 Pro?
The original T1 Tonematch mixer will need an audio cable (two if connecting two L1 Pro systems in stereo or dual mono), and an ethernet cable (or Tonematch power supply).
Important: The L1 Pro8, Pro16, or Pro32 can power the T1 Tonematch mixer via the ethernet cable, but won’t do audio. Unlike the much older L1 Model II or L1s, there is no audio transferred via this ethernet connection.
- Power up your T1 via the Tonematch power supply, or an ethernet cable connected to the L1 Pro Tonematch port
- Run a 6.3mm TRS (stereo) cable from the T1 master out, into Ch3 on the L1 Pro.
If you want to run a pair of L1 Pro from the T4s, you’ll need to run an audio cable (TRS 6.3mm or “quarter inch” jack) from the AUX out of the T1 to your 2nd L1 Pro or S1 Pro+.
Read the full article at the Bose Portable PA Encyclopedia FAQ and Wiki
Bose ToneMatch Power Supply
$129.00

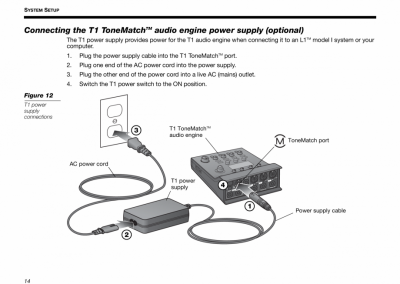

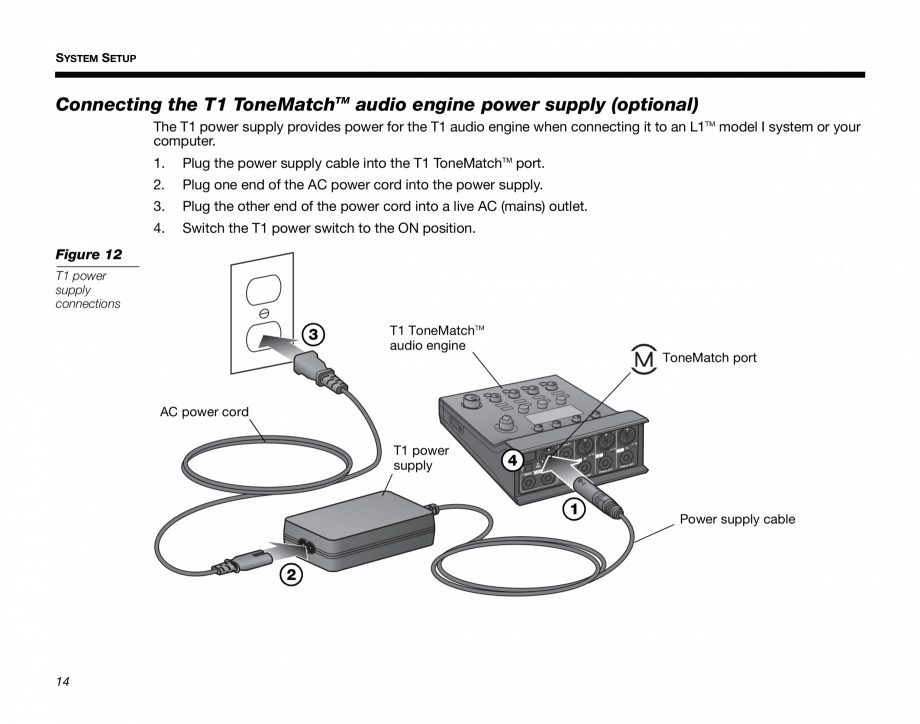

The Bose ToneMatch Power Supply Provides power for the ToneMatch audio engine when used with an L1 Compact or L1 Model I system, or for stand alone use. Usually your T1 ToneMatch is powered by the ethercon cable from your Bose L1 Model 1S or L1 Model II. There are times however, when you need to use your ToneMatch with a Bose L1 Compact, Bose F1 or another brand of system. In this instance, you’ll need the T1 power supply.
The Bose ToneMatch Power Supply Provides power for the ToneMatch audio engine when used with an L1 Compact or L1 Model I system, or for stand alone use. Usually your T1 ToneMatch is powered by the ethercon cable from your Bose L1 Model 1S or L1 Model II. There are times however, when you need to use your ToneMatch with a Bose L1 Compact, Bose F1 or another brand of system. In this instance, you'll need the T1 power supply.
Power rating: AC 100–120V~.
Product code 042533
The Bose ToneMatch Power Supply Provides power for the ToneMatch audio engine when used with an L1 Compact or L1 Model I system, or for stand alone use. Usually your ToneMatch is powered by the ethercon cable from your Bose L1 Model 1S or L1 Model II. There are times however, when you need to use your ToneMatch with a Bose L1 Compact, Bose F1 or another brand of system. In this instance, you’ll need the ToneMatch power supply.
Power rating: AC 100–120V~.
Product code 042533
