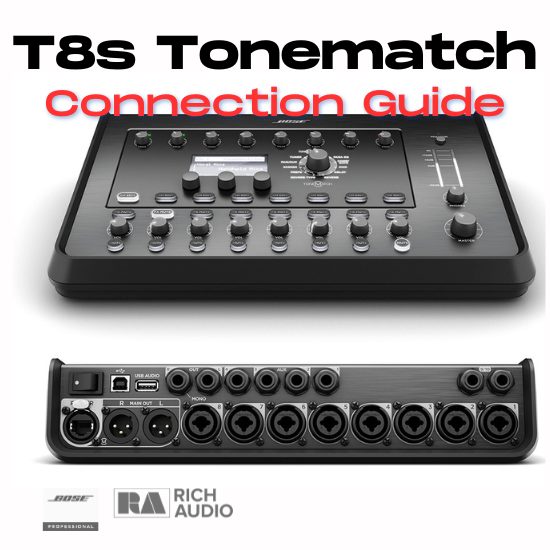

Connecting Your Bose T8S ToneMatch Mixer to the L1 Pro32, Pro16 or Pro8 Systems

This guide provides a comprehensive overview of connecting a Bose T8S ToneMatch mixer to L1 Pro systems for various configurations. Whether you require a focused mono setup for a single L1 Pro system or a captivating stereo experience for dual L1 Pro systems, this document outlines the necessary steps for optimal audio performance.

Connecting to a Single L1 Pro System (Mono Setup)

  1. Input Signal Routing: Connect your audio sources (microphones, instruments) directly to the designated input channels on the T8S mixer.

  2. ToneMatch Cable Connection: Utilize the dedicated ToneMatch cable to establish a digital connection between the ToneMatch port on your T8S mixer and the corresponding port on your L1 Pro system. This high-quality cable ensures pristine audio signal transmission.

  3. Mono Channel Panning: To achieve a centered mono sound, adjust the pan knob for each channel on the T8S mixer fully to the left. This configuration directs only the left channel audio to the L1 Pro system, ideal for scenarios requiring a singular, powerful sound source.

Connecting to Dual L1 Pro Systems (Dual Mono Setup)

  1. Mic/Instrument Input: Similar to the single L1 Pro setup, connect your microphones or instruments to the input channels available on your T8S mixer.

  2. Digital Audio Link: Employ the ToneMatch cable once again to establish a digital connection between the ToneMatch port on your T8S mixer and the first L1 Pro system. This cable ensures a seamless and uncompromised digital audio signal transmission.

  3. Mono Channel Panning: As with the single L1 Pro setup, pan all channels on your T8S mixer completely to the left. This approach guarantees a dedicated mono signal is delivered to both the first and second L1 Pro systems, resulting in a powerful and synchronized mono soundscape.

  4. System Signal Chain: Utilize an XLR cable to connect the LINE OUT port on the first L1 Pro system to an available input on the second L1 Pro system. This cable effectively carries the amplified audio signal from the first system to the second, creating a continuous audio stream.

Important Note: When connecting to channels 1 or 2 on the second L1 Pro system, ensure the ToneMatch selector for that specific channel is OFF.

Connecting to Dual L1 Pro Systems (Stereo Setup)

  1. Power Supply Connection: Using the included power supply, connect the T8s to power.

  2. Right Channel Routing: Using an XLR cable, connect the Main Out R (right) XLR socket on your T8S mixer and an input on your L1 Pro.  Ch 3 means you won’t accidentally apply the L1 Pro built-in ToneMatch settings found on Ch 1+2.

  3. Left Channel Routing: Connect another XLR cable to connect the Main Out L (left) pocket on your T8S mixer to an input on your second L1 Pro system.

Important Note:  Ensure that the ToneMatch selector on the corresponding channel (channels 1 or 2) of the second L1 Pro system is set to OFF for both left and right channels.

HEY DJS!

Input channels 9 and 10 on the T8s mixer bypass all EQ and effects. While you can control EQ and effects on your DJ controller, it almost eliminates the need for a T8s mixer if you’re not using other sources  (microphones, band instrument mixing, etc).  If you have enough spare inputs, consider running into any of the other channels (1 through 8), either a single one for mono or two channels for stereo.  That way you can make full use of the magic that is built into the Tonematch.  This really brings your L1 Pro to life!
